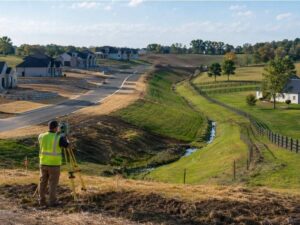

Where New Neighborhoods Meet Horse Farms, a Topographic Survey Clarifies the Transition

A topographic survey does its most delicate work where a new neighborhood meets an old horse farm. These edges are tricky. On one side, houses need graded lots, driveways and drainage. On the other, pastures, barns and grazing land have sat undisturbed for generations. The line between them carries real tension, and getting it wrong creates drainage fights, fence disputes and unhappy neighbors. Mapping the ground carefully is what lets a developer design a transition that works for both sides.

Mapping Existing Fences Against the Legal Property Line

Farm fences and legal boundaries rarely match, and that gap causes trouble. A pasture fence built eighty years ago followed the easiest ground, not a surveyed line. Over the decades, everyone treated it as the boundary even though the deed says otherwise.

The survey shows both lines. Crews locate the existing fence and measure it against the resolved property boundary. Sometimes the fence sits a few feet onto the farm. Other times it encroaches onto the development side. Either way, the difference has to be visible before anyone builds.

That comparison prevents future conflict. A developer who builds to the fence instead of the legal line may end up with houses partly on the neighbor’s land. The farm owner who assumed the fence was the boundary may feel cheated. Showing the measured difference lets both parties see the situation clearly and address it before construction.

Recording Slopes and Drainage Between Different Land Uses

Water moving between the two properties needs careful attention. The survey records the existing slopes and drainage patterns along the shared edge. Crews map where water currently flows, where it collects, and how it crosses from one property to the other.

Development changes those patterns, which is exactly the risk. Grading new lots, adding roofs and paving driveways sends more water toward the edges of a site. If that water heads onto the neighboring pasture, it can turn grazing land into mud or wash out a fence line.

The surveyed grades let engineers design around the problem. They can plan swales, keep runoff on the development side, and match the new grades to the existing farm ground. Protecting the farm’s drainage keeps the peace and often keeps the developer out of legal trouble.

Locating Farm Roads and Shared Access Points

Working farms have their own access, and the survey documents it. Crews locate farm roads, lanes, gates and any shared entrances near the development edge. These routes often carry rights that a new neighborhood has to respect.

Some access is more formal than it looks. A farm lane crossing the development parcel may sit under a recorded easement, giving the farm owner a legal right to use it. The survey identifies those features so the design accounts for them rather than blocking them.

Shared entrances need special care. Where a farm and a new subdivision use the same road connection, the layout has to work for both a truck hauling hay and a family car. Mapping the existing access shows what’s there before the design tries to change it.

Defining Buffers, Open Space, and Preservation Areas

Good transitions usually include a buffer, and the survey supports designing one. A strip of open space, trees or landscaping between the houses and the pasture softens the edge and reduces conflict. The survey provides the measured area available for it.

Preservation areas often factor in too. A development next to a horse farm may keep a treeline, a stream corridor or an existing hedgerow as a natural separator. The survey locates those features precisely so the design can protect them rather than accidentally clearing them.

These buffers do practical work beyond appearance. They give runoff a place to slow down, keep construction activity back from the property line, and provide separation that both the new residents and the farm owner appreciate. Measured survey data is what lets a designer size and place them correctly.

Designing Smooth Grade Changes Near Barns and Pastures

Abrupt grade changes at a property edge cause problems, so the design aims for smooth transitions. The survey records the existing elevations along the farm side, including the ground near barns, pastures and any structures close to the line.

Those elevations guide the grading plan. New lots often sit at different heights than the neighboring pasture, and the design has to bridge that difference gradually. A steep drop or a retaining wall right at the boundary looks harsh and can redirect water in unwanted ways.

Barns and outbuildings deserve extra attention. Structures near the property line have foundations and drainage that new grading can affect. Knowing their elevations lets the engineer keep water away from them and avoid undermining anything during construction. The result is an edge where the two land uses meet without fighting each other.
