You cannot plan a renovation on ground you have not measured. An elevation survey records the exact height of the land and the structures on it before design starts. It tells your team where water sits, where the floors line up and where the site slopes. For developers working on Lexington properties, that baseline can be the difference between a smooth build and a costly redesign. Skip it, and you plan on guesses.

Most renovation problems trace back to bad ground data. A misjudged slope sends water the wrong way. A porch that does not match the new floor height throws off the whole design. Good elevation data stops these issues before they cost you. The rule is simple. Measure first, then design.

Existing Elevation Data Establishes the Property’s Starting Condition

Every renovation starts from what is already there. You cannot design a change without knowing the current ground and structure heights. That is the job of an elevation survey.

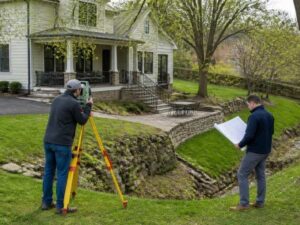

The survey records exact heights across the site. Ground levels, floor heights, entrances and key features all get measured. This gives your design team a true picture of the starting point.

Some renovation work leans on this more than others. Anything that touches grading needs it. So does new drainage. Foundations, entrances and outdoor improvements all depend on knowing the existing heights first.

Say you plan to add a room at the back of a house. The new floor has to meet the old one. The ground outside has to drain away from both. Without measured elevations, your architect is working blind. A small error at the design stage turns into a big fix in the field.

Lexington sites often sit on rolling ground. A yard that looks flat can hold a two-foot drop across its width. The survey catches that. It turns a rough guess into a hard number your team can build on.

Elevation Measurements Help Show How Renovation Work May Change Drainage

Water moves for one reason. Gravity. It runs downhill every time, and your renovation can change the path it takes.

An elevation survey maps how water moves today. It shows the slopes, the low points and the paths runoff follows across the site. It also records finished floor elevations, which is the height of the floor inside the building.

This data lets designers test a plan before it gets built. Add a patio here, raise the grade there, and the water may shift. The survey shows if that shift sends water toward the house. It also shows if runoff would push onto a neighbor’s land, which can cause real legal trouble.

Picture a new driveway poured a few inches too high. Rain that used to drain away now pools against the garage. That is a drainage failure born from missing elevation data. The survey helps your team spot the risk on paper first.

Getting this right protects the building and keeps the peace next door. Bad drainage is one of the most common and most expensive renovation mistakes. Measured elevations cut that risk down to size.

Documenting Building and Site Heights Supports Better Renovation Planning

A renovation has to connect with what already exists. New work that ignores the current heights ends up misaligned. The survey stops that.

An elevation survey records the height of the key features on your site. That list often includes:

• Finished floor levels inside the building
• Porches and entry steps
• Driveways and walkways
• Retaining walls
• Patios and outdoor slabs

Each of these has to tie into the new design. A new patio must meet the back door at the right height. An addition must line up with the existing floor. A driveway must slope the right way toward the street.

When architects and engineers have these numbers, planning gets sharper. They design additions that fit the first time. They avoid the awkward step-downs and mismatched levels that come from guesswork. The work connects clean, inside and out.

Miss this step and the gaps show up late. A porch that sits two inches off. An addition floor that does not match. These are the errors that force rework once the crew is already on site.

Existing Elevation Surveys Can Reveal Constraints Before Construction Starts

Some sites fight back against a renovation plan. The ground itself sets limits. An elevation survey brings those limits into view before you commit to a design.

Uneven terrain is a common one. A steep grade change can rule out a simple addition. A low area that collects water may need extra drainage before anything gets built. Retaining walls, whether yours or a neighbor’s, can box in what you are able to do.

These constraints matter most when you find them early. A steep slope discovered at design time is a planning choice. The same slope found mid-build is a work stoppage. One costs a design revision. The other costs weeks.

Nearby improvements count too. A neighbor’s raised patio or wall can affect how water and grade work on your side of the line. The survey records these features so your team plans around them from the start.

Knowing the constraints up front changes how you budget. You can price the extra grading or the structural fix before you break ground. No surprises halfway through.

A Recorded Elevation Baseline Helps Verify the Finished Renovation

The survey does one more job after the design is done. It becomes your reference for checking the finished work.

Pre-renovation elevation data creates a fixed baseline. Once the build wraps, a follow-up survey compares the new elevations against the plan. This confirms the work came out the way it was drawn.

That check covers the parts that matter most. Did the final grades match the design? Does the drainage run the right way? Did the foundation and floors land at the right heights? The baseline gives you a clear yes or no.

This step protects the owner. If a graded area does not drain as designed, the comparison shows it. Problems get caught while the crew can still fix them. That beats finding out after the first heavy rain.

A recorded baseline also helps down the road. Future work, permits and property sales all benefit from having accurate elevation records on file. The survey you commission today keeps working long after the renovation is done.
