You can’t plan around what you can’t see. A wall hides behind overgrowth. A drain line runs where nobody remembers. Then the plan meets the ground and the trouble starts. Survey mapping records what’s already on a property before you change it. That map gives designers a true picture of the site, so the new plan works with what’s there instead of colliding with it.

How Can Survey Mapping Show What Is Already on a Property

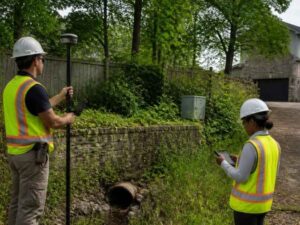

Survey mapping locates the features on a property and puts them on one drawing. It captures what you can see on the ground. That gives you an accurate record of the site as it stands today.

The map picks up the physical things that matter for a project:

• buildings and other structures
• driveways, roads and paved areas
• walls and fences
• drainage features like ditches, inlets or swales
• other visible site elements tied to the work

Each feature lands in its real spot, measured and drawn to scale. You see where things actually are, not where you think they are.

That picture helps the design team from the start. A designer working from a mapped site knows what’s there before they draw a line. They spot the wall, the drain and the drive early. A clear view of the property beats a rough guess every time.

Why Should Existing Site Features Be Mapped Before Construction

Existing features shape a new site plan more than people expect. What’s already on the ground can help or block your plan. Mapping it first tells you which.

Skip that step, and conflicts show up during the build. The new driveway crosses an old drain line. The addition sits where a wall stands. The grading plan ignores a slope nobody measured. Each surprise costs time and money to fix. Mapping the site first heads those conflicts off.

Timing is the point here. Map before removal, expansion or new construction starts. That way you plan around the real conditions while the plan is still on paper. Once the crew is on site, changes get expensive fast.

How Does Survey Mapping Help Designers Plan Site Changes

Mapped features guide where new work can go. The design team places proposed improvements against the real site instead of a blank sheet. They see the open space and the features they have to work around.

The map lets them compare existing conditions with the proposed plan. They lay the new design over the current site and check the fit. Does the new structure clear the drain? Does the drive miss the wall? Does the grading work with the slope that’s already there? The map answers those questions during design, not during construction.

Current site information keeps everyone aligned. Architects, engineers and developers all work from the same accurate base. When the map is right, their plans match the ground. That cuts the changes that pile up when a design rests on bad or missing information.

What Existing Features Should Be Checked Before Changing a Site

The features worth mapping depend on the work you plan. A good map covers the improvements that could affect the project or get affected by it. That usually means more than just the buildings.

Look at these when a site change is coming:

• structures like homes, garages and sheds
• paved areas such as driveways, walks and parking
• access points and entrances
• drainage features that move water across the lot
• fences, walls and other boundary-side improvements

The list shifts with the job. A drainage project leans hard on ditches and inlets. An addition leans on structures and setbacks. A driveway change leans on access points and grades. Tell the surveyor what you plan to do, so the map covers what your project actually needs.

That one conversation makes the map more useful. A surveyor who knows your goal maps the right features in the right detail. A surveyor working blind may miss what matters or map things you don’t need.

When Should Property Owners Get Survey Mapping Before Site Changes

Get the mapping before your final plans are set. Early site information gives the design room to adjust while changes are still cheap. Lock the plans first, and a mapped surprise can force a costly rewrite.

Early mapping catches issues at the right time. A feature that conflicts with your plan is easy to work around on paper. The same feature found mid-build stops the crew and runs up the bill. The map turns a job-site problem into a design-desk decision.

For a property owner or developer planning site changes, this step protects the whole project. You start the design with an accurate picture of the property. You spot the conflicts before they cost you. A current map up front leads to a smoother plan and fewer surprises once the work begins.
